APC UPS 3000VA SMT3000RMI2UC
- Giá bán: Liên hệ
- Nhà sản xuất: APC
- Dòng sản phẩm: Thiết bị lưu điện APC
- Tình trạng hàng hóa: Liên hệ

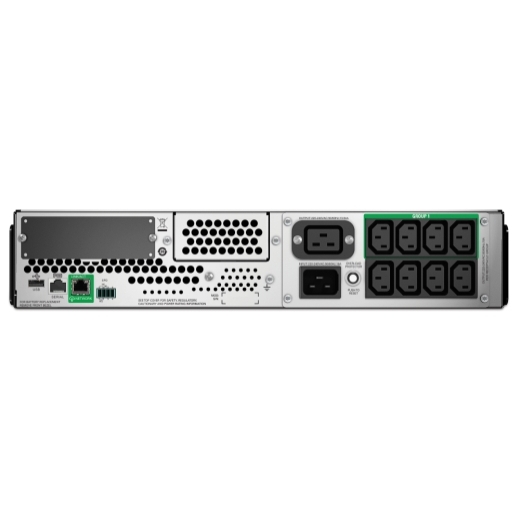

- APC Smart-UPS 3000VA LCD RM 2U 230V with SmartConnect (SMT3000RMI2UC)
THÔNG SỐ KỸ THUẬT
| Overview | |
| Lead time | Usually in Stock |
| General | |
| Provided equipment | Installation guide
Documentation CD Rack mounting hardware Rack mounting support rails USB cable |
| Physical | |
| Cable length | 2.00 m |
| Number of rack unit | 2U |
| Depth | 68.3 cm |
| Height | 8.6 cm |
| Net weight | 44.28 kg |
| Width | 43.2 cm |
| Input | |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Plug standard | BS1363A British
IEC 320 C20 Schuko CEE 7 / EU1-16P |
| Inputvolt_other | 220 V
240 V |
| Input voltage | 230 V |
| Input voltage limits | 151…302 V adjustable
160…286 V |
| Output | |
| Rated power in W | 2700 W |
| Maximum configurable power in W | 2700 W |
| Harmonic distortion | Less than 5 % |
| Outputvolt_other | 220 V
240 V |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Nb of power socket outlets | 8 IEC 320 C13
3 IEC Jumpers 1 IEC 320 C19 |
| Output voltage | 230 V |
| Conformance | |
| Product certifications | CE
EAC IRAM RCM VDE WEEE |
| Standards | EN 60950
EN/IEC 62040-1 EN/IEC 62040-2 |
| Marking | GS Mark |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 348 Btu/h |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Liquid value | 0 |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Free slots | 1 |
| Surge Protection and Filtering | |
| Surge energy rate | 320 J |
| Packing Units | |
| Package 1 Weight | 51.7 kg |
| Package 1 Height | 25.4 cm |
| Package 1 width | 60 cm |
| Package 1 Length | 98 cm |
| Number of Units in Package 3 | 8 |
| Offer Sustainability | |
| Sustainable offer status | Green Premium product |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| Optimized Energy Efficiency | Energy efficient product |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
