THÔNG SỐ KỸ THUẬT

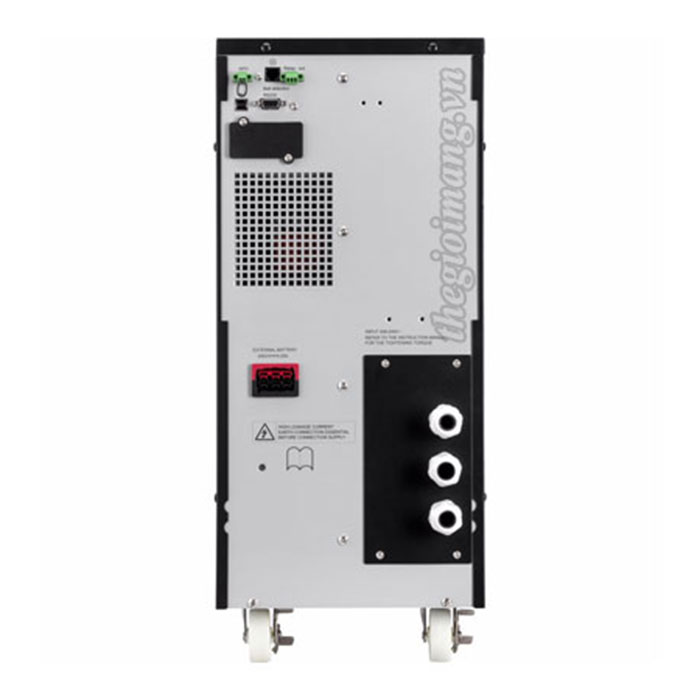

Bộ lưu điện UPS Eaton 9SX 6000I (9SX6KI)
| Model | 9SX6KI |
| Rating (VA/W) | 6000 VA/5400 W |
| Format | Tower |
| Electrical characteristics | |
| Technology | ON-LINE double conversion with automatic bypass and Power factor correction system |
| Nominal voltage | 200/208/220/230/240V |
| Input voltage range | 180-276V without derating (up to 120-276V with derating) |
| Input frequency range | 40-70Hz, 50/60Hz autoselection, frequency converter mode |
| Connections | |
| Input | Ph+N+E Terminal block |
| Outputs | Ph+N+E Terminal block |
| Switched outlet group | 2 outlet groups |
| Communication | |
| Communication ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
