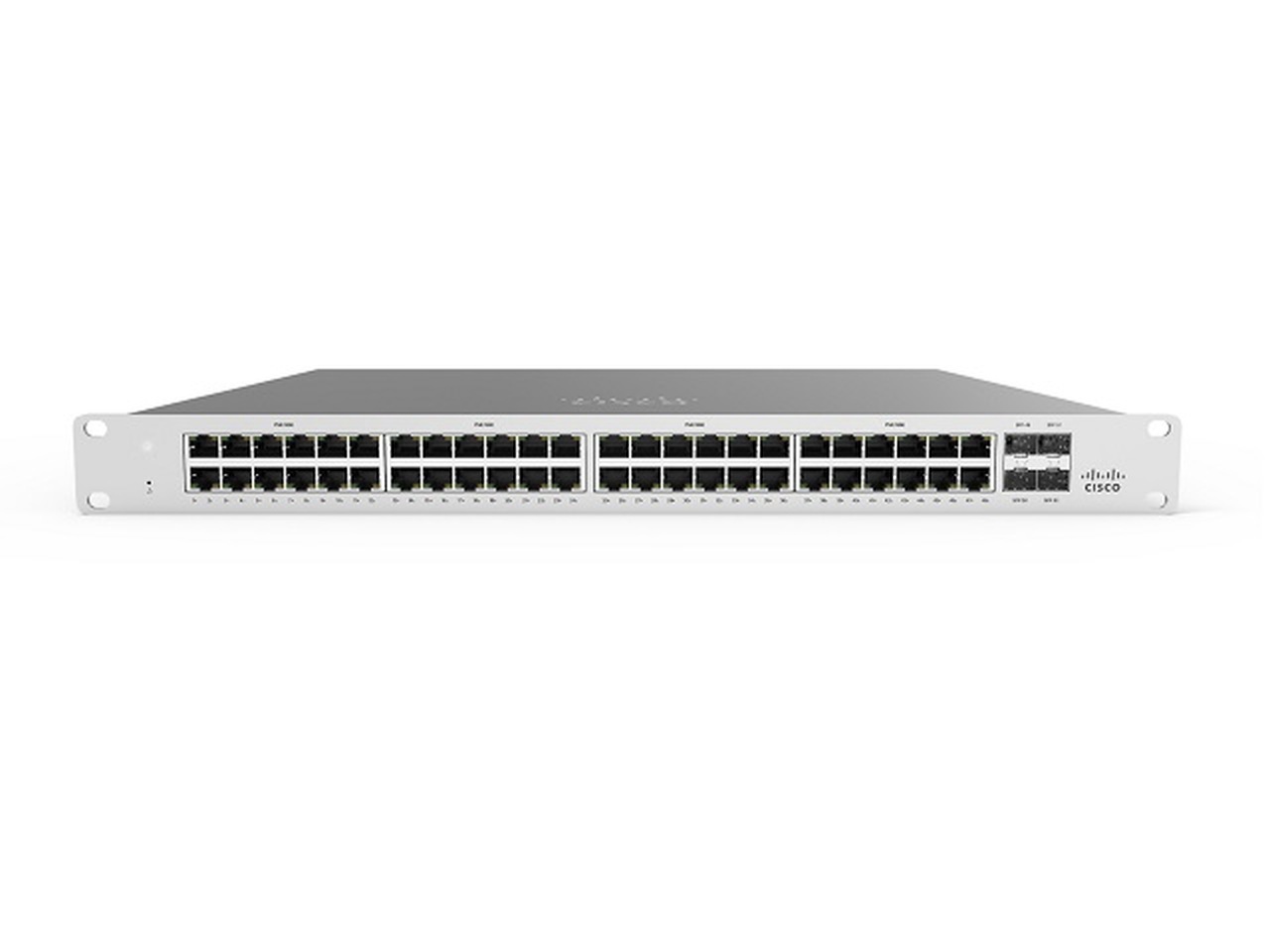

Meraki MS120-48-HW

Mã sản phẩm

 MS120-48-HW

Interface

• 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
• 4 x 1G SFP uplink
• RJ45 Management port

Switching Capacity

104 Gbps

Physical Dimensions (H x W x D)

1.73 x 17.32 x 9.84”
(4.40 x 44 x 25cm)

Weight

8.97 lb (4.06 kg)

Idle / Full Load Power

17 / 36 W

Power Supply Configuration

Fixed internal

Layer 3 capabilities

– Static routing, OSFPv2
– Multicast routing
– Warm Spare (VRRP) 2
– DHCP Relay, DHCP Server

Mounting

– Rack-mountable with included rack mount hardware
– Front-to-back airflow

Performance

– Switching capacity: 56Gbps on 24-port models, 104Gbps on 48-port models
– Forwarding rate: 41.67mpps on 24-port models, 77.38 mpps on 48-port models
– Jumbo frame (9578 byte Ethernet frame)
– Flow control

Power

– Power input: 100 – 240 VAC, 47-63 Hz
– Power consumption: 8 – 908W

Environment

Operating temp: 0°C to 40°C, Humidity: 5 to 95% non-condensing

Warranty

Full lifetime hardware warranty with next-day advanced replacement included
