Planet KVM IKVM-210-16M
Giá bán: Liên hệ
Planet IKVM-210-16M: 17″ 16-Port Combo VGA LCD IP KVM Switch ● Integrated 17″ LCD monitor and keyboard/touchpad module within 1U chassis. ● Controls up to 256 PCs (Standalone: 16 PCs). ● Remotely control PC via TCP/IP and a built-in 10/100/1000Mbps Ethernet port. ● Multiplatform support – Windows, Linux and Sun.
THÔNG SỐ KỸ THUẬT
Thiết bị Switch IP KVM Planet IKVM-210-16M
| Product | IKVM-210-16M | ||||||||||||
| Hardware | |||||||||||||
| Touch Pad | 1 | ||||||||||||
| Number of Ports | 16 D-sub ports (15-pin) | ||||||||||||
| Maximum | 256 by 2-tier star-type cascading (KVM-210-16 x 16) | ||||||||||||
| PC Ports |
|
||||||||||||
| Port Select Panel |
|
||||||||||||
| LCD Panel |
|
||||||||||||
| Keyboard | 100 | ||||||||||||
| Video Resolution | Local side: 1280 x 1024 (max) Remote side: 1920 x 1080 (max) |
||||||||||||
| Remote Console | 1 RJ45 port for 10/100/1000BASE-T | ||||||||||||
| Console USB Hub Ports | 3 x USB 2.0 Type A female | ||||||||||||
| LCD Button | 6 | ||||||||||||
| Housing | Metal | ||||||||||||
| Dimensions (W x D x H) | 445 x 611 x 44.5 mm | ||||||||||||
| Weight | 17.52kg | ||||||||||||
| Power Requirement | 12V DC, 4A | ||||||||||||
| Installation | 1U rack-mountable | ||||||||||||
| Management | |||||||||||||
| PC Selection | Port select button Hotkeys on keyboard OSD (On screen display) |
||||||||||||
| Client Software | IPKVM Software | ||||||||||||
| Supported Protocol | TCP, IP, HTTP | ||||||||||||
| Scan Interval | 5~60 seconds | ||||||||||||
| Security | User password and super password DES, AES and 3DES |
||||||||||||
| Environment & Certification | |||||||||||||
| Operating Temperature | 0 ~ 50 degrees C | ||||||||||||
| Operating Humidity | 0 ~ 80% | ||||||||||||
| Tùy chọn Phụ kiện cho IKVM-210-16M | |
| KVM-KC1-1.8 | 1.8M USB KVM Cable with built-in PS2 to USB Converter |
| KVM-KC1-3 | 3M USB KVM Cable with built-in PS2 to USB Converter |
| KVM-KC1-5 | 5M USB KVM Cable with built-in PS2 to USB Converter |
TÀI LIỆU LIÊN QUAN
Data sheet Planet IKVM-210-16M

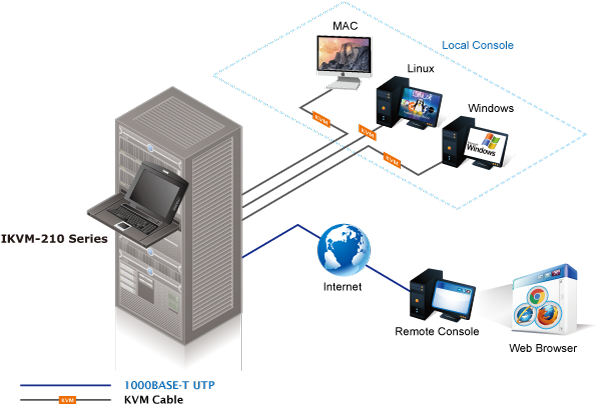

Remote Management via Network
With PLANET IKVM-210-16M, network administrators can control a server room locally or remotely through Internet. No additional software or license fee is needed; multiple users can securely access remote server by using a standard web browser to create an HTTP connection.
Cascaded Operation
Easy to install, each IKVM-210-16M can control up to 16 computers/servers. Moreover, a maximum of eight KVM switches can be cascaded to enable to control up to 256 servers.
