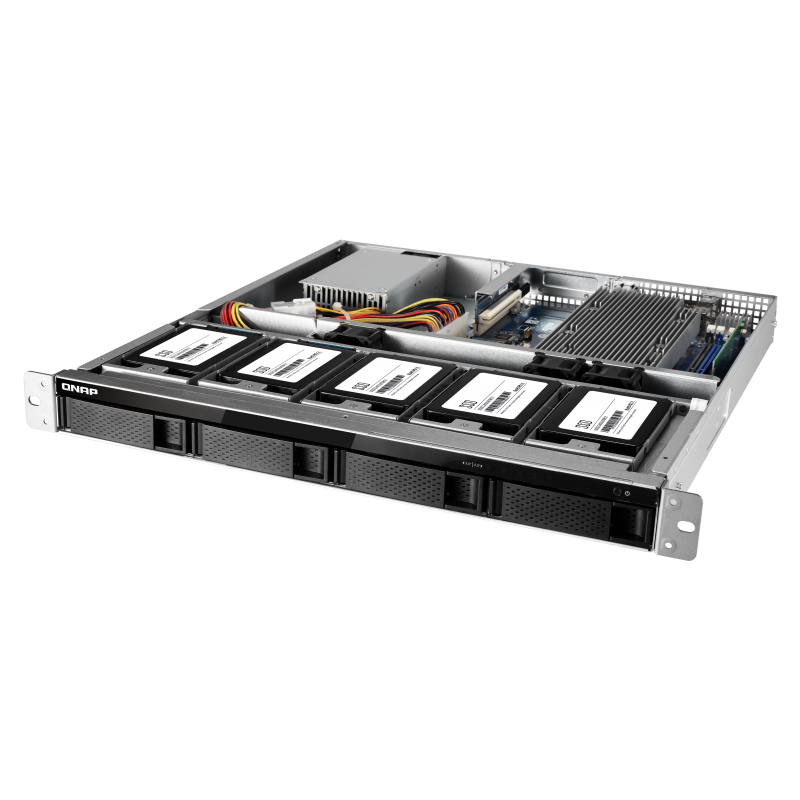

QNAP TS-h977XU-RP

Mã sản phẩm

TS-h977XU-RP-3700X-32G

CPU

AMD Ryzen™ 7 3700X 8-core/16-thread 3.4 GHz processor, Turbo Core 4.4 GHz

CPU Architecture

64-bit x86

Encryption Engine

Yes (AES-NI)

System Memory

32 GB UDIMM DDR4 (2 x 16GB)

Maximum Memory

128 GB (4 x 32 GB)

Memory Slot

4 x Long-DIMM DDR4

Flash Memory

5 GB (Dual boot OS protection)

Drive Bays

4 x 3.5-inch + 5 x 2.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch/2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

Yes

SSD Cache Acceleration Support

Yes

Gigabit Ethernet Port (RJ45)

2

10 Gigabit Ethernet Port

2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port

Jumbo Frame

Yes

PCIe Slots

1
Slot 1: PCIe Gen 3 x16

USB 3.2 Gen 1 port

4

USB 3.2 Gen 2 (10Gbps) Port

1 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps

Form Factor

1U Rackmount

LED Indicators

HDD 1-9, Status, LAN, storage expansion port status

Buttons

Power, Reset

Dimensions (HxWxD)

43.3 × 482.6 × 505.54 mm

Power Supply Unit

300W (x2), 100-240V

Weight (Net)

8.62 kg

Operating temperature

0 – 40 °C

Power Consumption
/Operating Mode

76.43 W

Fan

3 x 40mm, 12VDC

Sound Level

43.8 db(A)

Max. Number of Concurrent Connections (CIFS)

700
