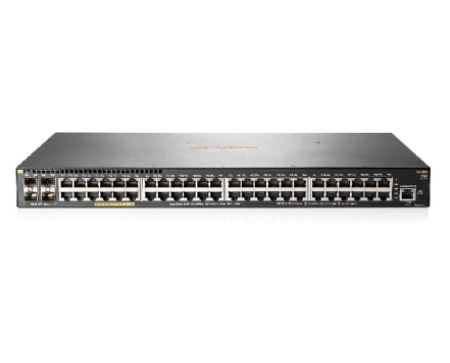

Switch Aruba JL355A

Mã sản phẩm

Switch Aruba JL355A

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports; PHY-less

Additional ports and slots

1 dual-personality (RJ-45 or USB micro-B) serial console port

Physical characteristics

Dimensions: 17.42(w) x 9.7(d) x 1.73(h) in (44.25 x 24.63 x 4.39 cm) (1U height)
Weight: 6.83 lb (3.10 kg)

Memory and processor

Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB

4.5MB Ingress/7.875MB Egress, 4 GB eMMC

Mounting and enclosure

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting

Performance

1000 Mb Latency < 3.8 µs (64-byte packets)
10 Gb Latency < 1.6 µs (64-byte packets)
Throughut up to 112.0 Mpps
Switching capacity: 176 Gbps
MAC address table size: 16384 entries

Environment

Operating temperature: 32°F to 113°F (0°C to 45°C)
Operating relative humidity: 5% to 95%, noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:15% to 95% @ 149°F (65°C), noncondensing
Airflow direction: Side-to-side
Acoustic: Power: 54.1 dB, Pressure: 40.2 dB

Electrical characteristics

Frequency: 50/60 Hz
Maximum heat dissipation: 159 BTU/hr (167.74 kJ/hr)
Voltage: 100 – 240 VAC, rated
Maximum power rating: 46.6 W
Idle power: 32.7 W
