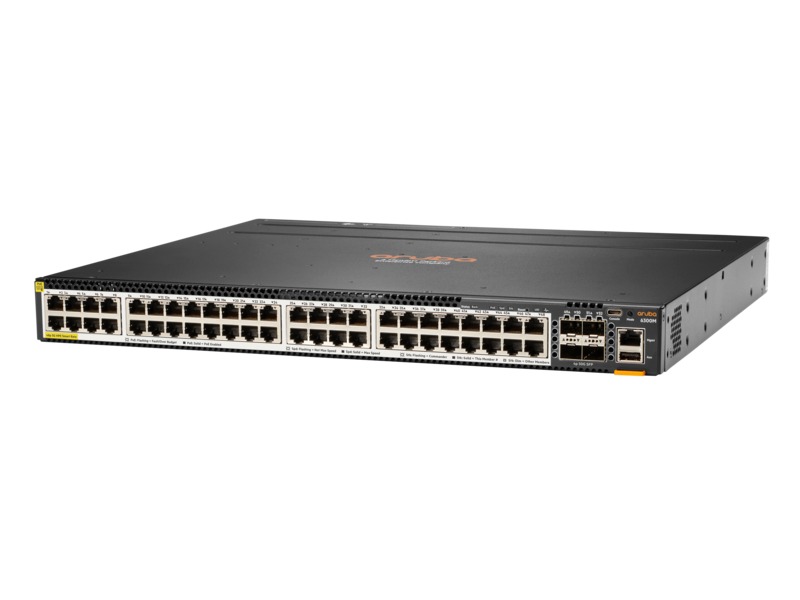

Thiết bị Switch Aruba JL659A
|
Mã sản phẩm |
Switch Aruba JL659A |
|
Description |
48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4x 1/10/25/50G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App |
|
Power supplies |
2 field-replaceable, hot- swappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs: JL086A, JL087A, JL670A Max PoE power: 2880W |
|
Fan tray |
Switch has two fan tray slots and comes with two fan trays installed. Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required. Each fan tray is comprised of two fans. |
|
Physical characteristics |
|
|
Dimensions |
17.4 (w) x 15.2 (d) x 1.73 (h) in (44.2 x 38.5 x 4.4 cm) |
|
Weight |
14.8 lbs (6.71 kg) |
|
CPU, Memory And Flash |
|
|
Processor |
Quad Core ARM Cortex™ A72 @ 1.8GHz |
|
Memory |
8 GBytes DDR4 |
|
Flash |
32 GBytes eMMC |
|
Mounting and enclosure |
Rack Mount 1U |
|
Performance |
|
|
Packet Buffer |
8 MB packet buffer memory |
|
System switching capacity |
880 Gbps |
|
System throughput capacity |
660 Mpps |
|
Model switching capacity |
880 Gbps |
|
Model throughput capacity |
654 Mpps |
|
Average latency (LIFO, 64-byte packets) |
|
|
Stack size |
10 members |
|
Max stacking distance |
Up to 10 kms with long range transceivers |
|
Stacking bandwidth |
200 Gbps |
|
Switched virtual interfaces (dual stack) |
1,000 |
|
IPv4 host table (ARP) |
28,800 |
|
IPv6 host table (ND) |
28,800 |
|
IPv4 unicast routes |
64,000 |
|
IPv6 unicast routes |
32,000 |
|
IPv4 multicast routes |
8,000 |
|
IPv6 multicast routes |
8,000 |
|
MAC table capacity |
29,490 |
|
IGMP groups |
8,000 |
|
MLD groups |
4,000 |
|
IPv4/IPv6/MAC ACL entries (ingress) |
5000/1250/5000 |
|
IPv4/IPv6/MAC ACL entries (engress) |
2000/500/2000 |
