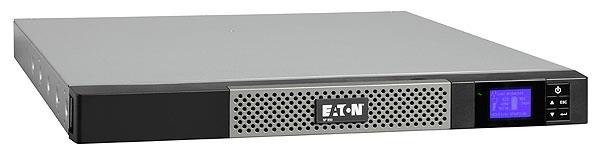

Bộ lưu điện UPS Eaton 5P 650i VA rack 1U (5P650iR)
|
Model |
5P650iR |
|
Rating (VA/W) |
650VA/420W |
|
Technology |
Rack 1U |
|
Electrical Characteristics |
|
|
Technology |
Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
|
Input voltage and frequency ranges without using batteries |
160V-294V (adjustable to 150V-294V) 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system),40 Hz in low-sensitivity mode |
|
Output voltage and frequency |
230 V (+6/-10 %) Adjustable to 200V / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 % (autosensing) |
|
Connections |
|
|
Input |
1 IEC C14 (10A) |
|
Outputs Rack 1U model |
4 IEC C13 (10A) |
|
Switched Outlet Group |
2 outlet groups |
|
Battery |
|
|
Typical backup times at 50 and 70% load* |
9/6 mn |
|
Battery management |
ABM® & Temperature compensated charging method (user selectable), Automatic battery test,deep discharge protection |
|
Communication |
|
|
Communication Ports |
1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously),1 mini terminal block for remote ON/OFF and Remote Power Off |
|
Communication Slot |
1 slot for Network-MS card , ModBus-MS or Relay-MS cards |
|
Operating conditions, standards and approvals |
|
|
Operating temeprature |
0 to 35°C |
|
Noise level |
<40dB |
|
Safety |
IEC/EN 62040-1, UL 1778 |
|
EMC, Performance |
IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance) |
|
Approvals |
CE, CB report (TUV) |
|
Dimensions H x W x D / Weight |
|
|
Rack 1U models |
43.2(1U)*438*364mm/8.6kg |
