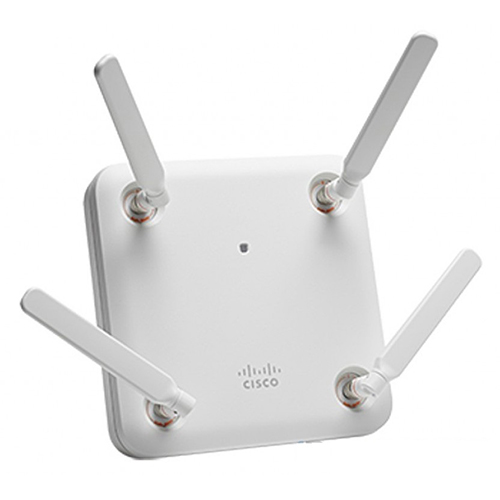

Thiết bị Cisco AIR-AP1852E-S-K9
|
Part Number |
AIR-AP1852E-S-K9 |
|
Description |
802.11ac Wave 2 Access Point, 4x4:4, External-Ant, S Regulatory Domain |
|
Features |
- 4x4 MIMO with four spatial streams, single-user MIMO - 4x4 MIMO with three spatial streams, multiuser MIMO - MRC - 802.11ac beamforming (transmit beamforming) - 20-, 40-, and 80-MHz channels - PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
|
Regulatory Domain |
S (S regulatory domain): - 2.412 to 2.472 GHz; 3 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz;, 11 channels - 5.745 to 5.825 GHz; 5 channels |
|
Antenna |
External Antenna |
|
Interfaces |
- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
|
Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Weight |
3.12 lb (1.41 kg) |
