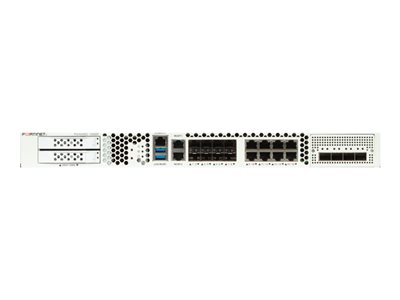

Thiết bị Forti-FAD-2200F
|
Mã sản phẩm |
FAD-2200F |
|
System Performance |
|
|
L4/L7 Throughput |
60 Gbps / 35 Gbps |
|
L4 CPS |
1,200,000 |
|
L4 HTTP RPS |
4,000,000 |
|
Maximum L4 Concurrent Connection |
72,000,000 |
|
L7 CPS (1:1) |
280,000 |
|
SSL CPS/TPS (1:1) 2K keys |
40,000 |
|
SSL Bulk Encryption Throughput |
25 Gbps |
|
Compression Throughput |
22 Gbps |
|
SSL Acceleration Technology |
ASIC |
|
Virtual Domains |
60 |
|
Hardware Specifications |
|
|
Memory |
64 GB |
|
Network Interfaces |
8x SFP ports, 12x 10GbE SFP+ ports |
|
10/100/1000 Management Interface |
2 |
|
Storage |
240 GB SSD |
|
Management |
HTTPS, SSH CLI, Direct Console DB9 CLI, SNMP |
|
Power Supply |
Dual |
|
Dimensions |
|
|
Height x Width x Length (in) |
1.73 x 21.5 x 17.3 |
|
Height x Width x Length (mm) |
44 x 548 x 440 |
|
Weight |
22.5 lbs (10.2 kg) |
|
Environment |
|
|
Form Factor |
1U Appliance |
|
Input Voltage |
100–240V AC, 50–60 Hz |
|
Power Consumption (Average / Maximum) |
267 W / 340 W |
|
Maximum Current |
120V / 7A, 240V / 3.5A |
|
Heat Dissipation |
911 BTU/h |
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-4–167°F (-20–75°C) |
|
Humidity |
10–85% non-condensing |
|
Compliance |
|
|
Regulatory Compliance |
FCC/ ICES, CE, RCM, VCCI, BSMI |
|
Safety |
UL/ cUL, CB |
