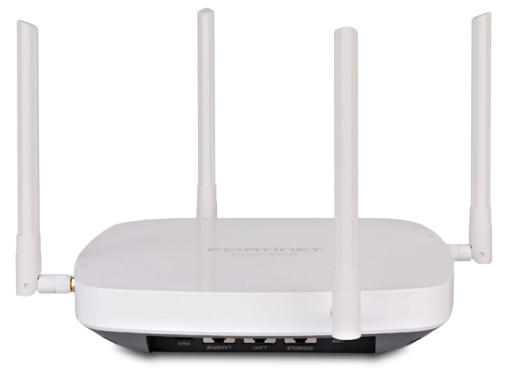

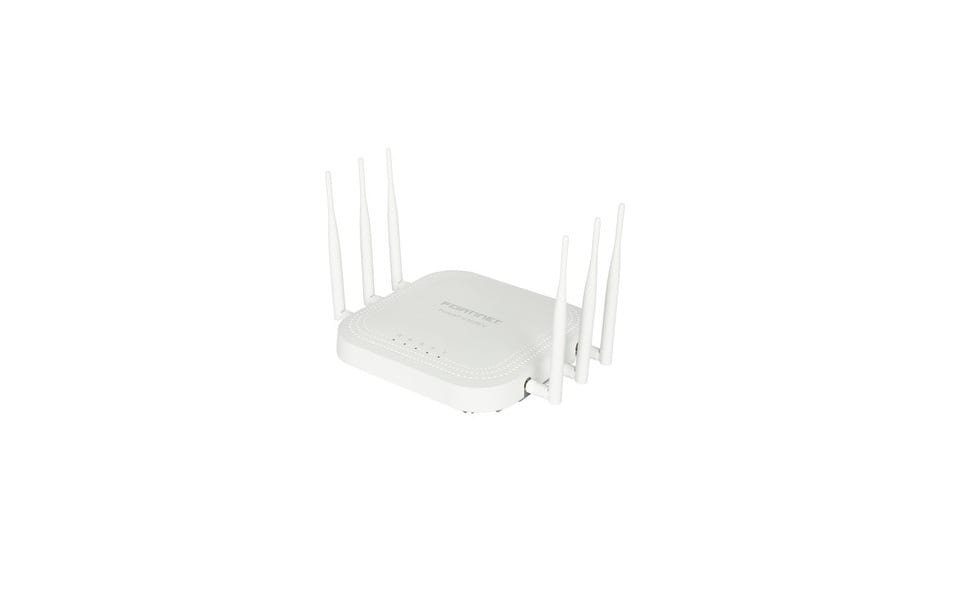

Thiết bị FortiAP-FAP-234F

Mã sản phẩm

FAP-234F

Hardware

Hardware Type

Ondoor AP

Number of Radios

3 + 1 BLE

Number of Antennas

2 dual band WiFi + 1 dual band scanning + 1 single band 2.4 GHz BLE/ZigBee

Antenna Type and Peak Gain

- Directional patch antenna
- Single band antennas: 10 dBi in 2.4 GHz band, 10 dBi in 5.0 GHz band
- Scanning radio: 3.5 dBi in 2.4 GHz band and 4.5 dBi in 5 GHz band
- BLE antenna: 3.5 dBi in 2.4 GHz band

Frequency Bands (GHz)

2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850

Radio 1 Capabilities

- Frequency band: 2.4 GHz
- Channel width: 20/40MHz
- Modulation: BPSK, QPSK, 64/256/1024 QAM
- MIMO Chains: 2x2 Service

Radio 2 Capabilities

- Frequency band: 5.0GHz
- Channel width: 20/40/80MHz
- Modulation: BPSK, QPSK, 64/256/1024 QAM
- MIMO Chains: 2x2 Service

Radio 3 Capabilities

- Frequency bands: 2.4 GHz and 5.0 GHz
- MIMO Chains: 1x1 Frequency Scanning

Maximum Data Rate

- Radio 1: up to 574 Mbps
- Radio 2: up to 1200 Mbps
- Radio 3: Frequency scanning only

Bluetooth Low Energy Radio

Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power

Interfaces

 - 2x 10/100/1000 Base-T RJ45
 - 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port

Power over Ethernet (PoE)

- 1 x 802.3at PoE default
- Operational modes:
  •  Powered by 2 x 802.af PoE - full functionality support
  •  1 port 802.3af - operates in reduced power (17dBm) R1 & R2

Simultaneous SSIDs

Up to 16 (14 if background scanning enabled)

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST

User/Device Authentication

WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist

Maximum Tx Powerr (Conducted)

- Radio 1: 2.4 GHz 27 dBm / 500 mW (2 chains combined)
- Radio 2: 5GHz: 25.5 dBm / 354 mW (2 chains combined)
- Radio 3: N/A
