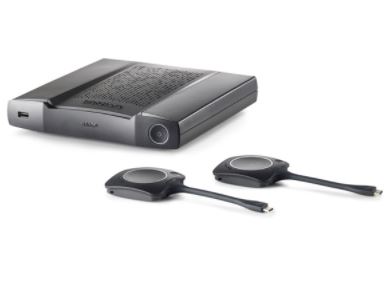

ClickShare Base Unit dimensions

Dimensions (HxWxD)

39 mm x 200 mm x 202 mm

Power supply

Standard 110/220 V AC plug

Power consumption

Operational: 50W Max

Weight

900 gr

General Specifications

Operating system

Windows 8/8.1/10. macOS 10.15 and higher.
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)

System requirements

Minimum:

• Intel i3 dual-core processor
• 8GB RAM
• OS:
• Windows 10 latest build
• Mojave latest build

Recommended:

• Intel i5 4-core processor
• 8GB RAM
• OS:
• Windows 10 latest build
• Mac OS latest build

Video outputs

4K UHD (3840*2160) @ 30Hz. HDMI 1.4b

Video inputs

1920x1080 @30Hz. HDMI 1.4b

Audio output

USB, SPDIF, jack, HDMI

USB

3 x USB-A, 1 x USB-C

ClickShare Buttons

2

ClickShare App

Desktop & Mobile

Native protocols

Airplay, Google Cast, Miracast

Noise Level

Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C

Authentication protocol

WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

Wireless transmission protocol

IEEE 802.11 a/g/n/ac and IEEE 802.15.1

Reach

Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)

Frequency band

2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

Connections

1x Ethernet LAN 1Gbit
1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)

Temperature range

Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)

Humidity

Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing

Anti-theft system

Kensington lock

Certifications

FCC/CE

Touch screen support & Interactivity

Yes

Wireless conferencing

via App or Button

Local view & moderation

Yes

Network connection

LAN & WiFi

Management and reporting

Yes
