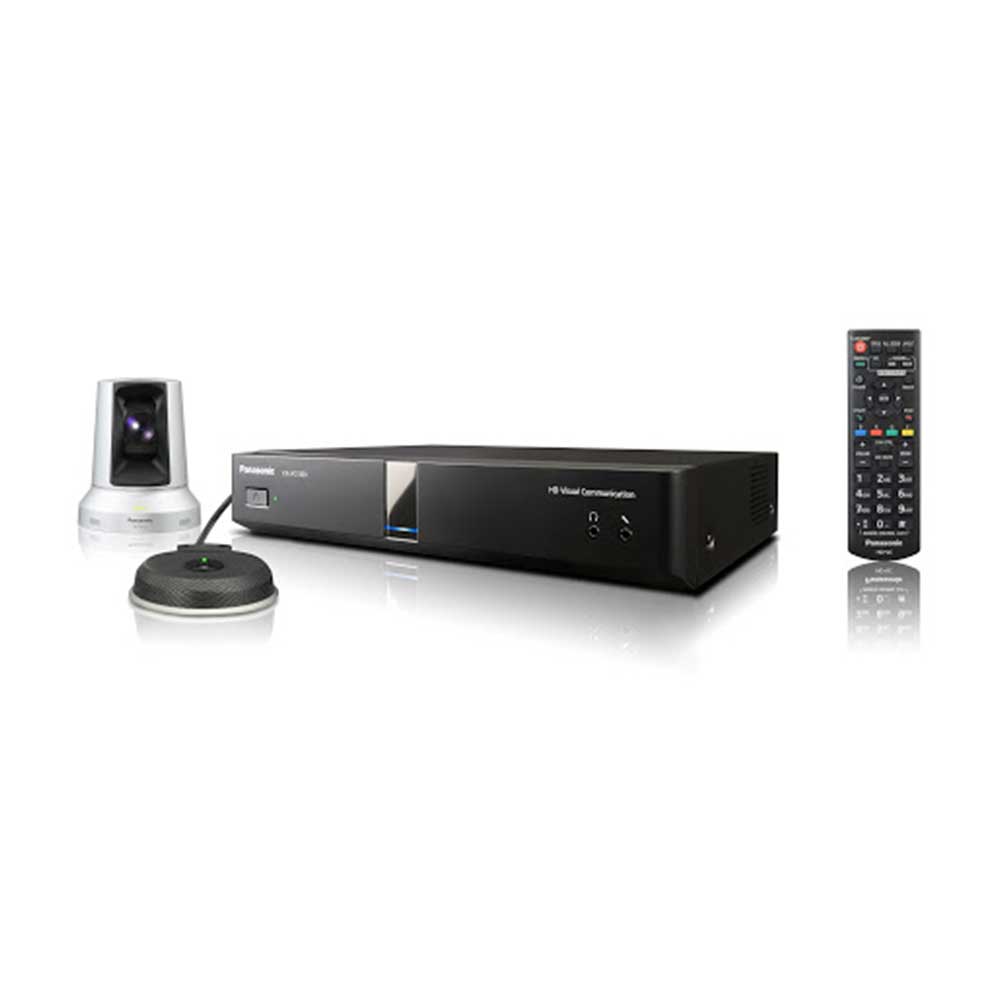

Thiết bị hội nghị truyền hình Panasonic KX-VC1300
|
Mã sản phẩm |
KX-VC1300 |
|
Communication Method |
SIP, H.323 |
|
Video Compression Method |
H.261 (mainstream only), H.263, H.263+, H.263++ (reception only), H.264 High Profile, H.264 Baseline Profile |
|
Audio Compression Method |
G.711 μ-law, A-law (3.4 kHz@64 kbps) |
|
Remote Camera Control |
H.224, H.281 (Zoom/Pan/Tilt/Preset) |
|
Encryption |
SRTP (AES 128 bit), H.235 (AES 128 bit) |
|
Other |
H.460 |
|
Communication Bandwidth |
256 kbps to 18 Mbps |
|
Audio |
Echo canceller, Auto gain control, Stationary noise reduction,Lip synch, Equalizer, Mic mute |
|
No. of Simultaneous Connection Sites |
4 |
|
Content Sharing |
PC (RGB/HDMI), Sub-camera (HDMI sub) |
|
USB Host Mode |
Updating Software, Recording, |
|
USB Device Mode |
USB Video Class: Version 1.0 |
|
WEB Hybrid Mode |
USB Audio Class 1.0 |
|
Network Protocol |
TCP/IPv4, TCP/IPv6, UDP/IPv4, UDP/IPv6, DHCP, DNS, HTTP, HTTPS, TELNET, NTP |
|
Network Functions |
Packet resending (ARQ), Forward Error Correction (FEC), Adaptive Rate Control (ARC), Reorder, Packet Shaping, Arbitrary Port Setting, NAT Compatibility, Encryption, IP Precedence/DiffServ Support |
|
External Control |
Via Web Browser, Control by HTTP CGI, TELNET, RS-232C |
|
Connection Modes |
IP mode, NAT Traversal mode, IP / NAT Traversal mode |
|
Dimensions (width x depth x height) |
Approx. 320 mm x approx. 230 mm x approx. 61 mm (Excluding projecting parts) |
|
Weight |
Approx. 2.0 kg (approx. 4.4 lb) |
|
Power Input |
AC 100-240 V, -1.4 A, 50/60 Hz |
|
Power Consumption |
Maximum: approx. 43 W, Standby: 0.6 W |
|
DC Power Input |
DC 24 V, 2.5 A |
|
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
|
Operating Humidity |
10 % to 90 % (non-condensing) |
