Mã sản phẩm

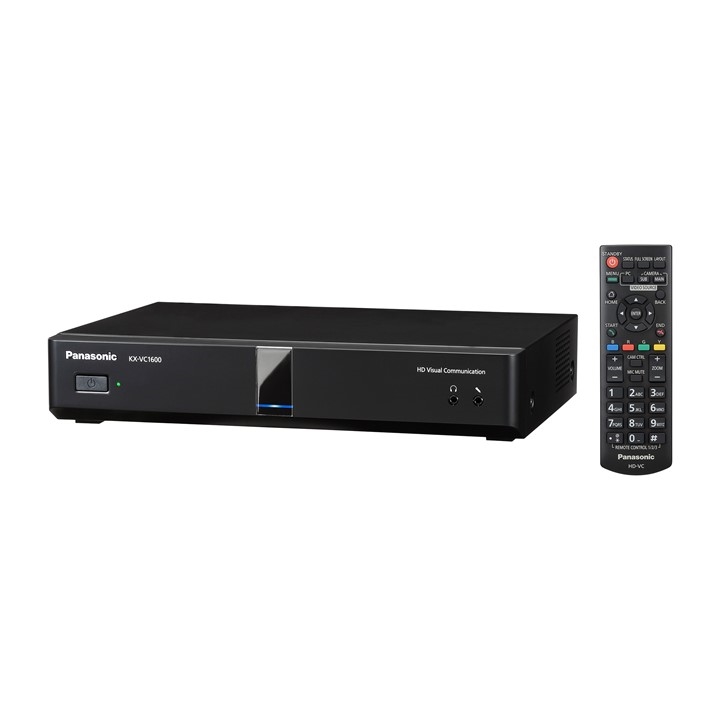

KX-VC1600

Communication Method

SIP, H.323

Video Compression Method

H.261 (mainstream only), H.263, H.263+, H.263++ (reception only), H.264 High Profile, H.264 Baseline Profile

Audio Compression Method

G.711 μ-law, A-law (3.4 kHz@64 kbps)
G.722 (7.0 kHz@64 kbps)
G.722.1 (7.0 kHz@32 kbps)
G.722.1 Annex C (14.0 kHz@48 kbps/24 kbps)
MPEG-4 AAC‑LD Mono (7.0 kHz@32 kbps, 14.0 kHz@64 kbps, 22.0 kHz@96 kbps)
MPEG-4 AAC‑LD Stereo (14.0 kHz@64 kbps, 22.0 kHz@96 kbps)

Encryption

SRTP (AES 128 bit), H.235 (AES 128 bit)

Other

H.460

Communication Bandwidth

256 kbps to 18 Mbps

Audio

Echo canceller, Auto gain control, Stationary noise reduction,Lip synch, Equalizer, Mic mute

No. of Simultaneous Connection Sites

6 (Expandable up to 10)

Content Sharing

PC (RGB/HDMI), Sub-camera (HDMI sub)

USB Host Mode
(USB Memory)

Updating Software, Recording,
Import: Contact List / Profile / Configuration Data / Encryption Data / Start-up Screen / Delivery Tree List
Export: Contact List / Profile / Configuration Data / Encryption Data / Delivery Tree List

USB Device Mode

USB Video Class: Version 1.0
USB Audio Class: Version 1.0

WEB Hybrid Mode

USB Audio Class 1.0

Network Protocol

TCP/IPv4, TCP/IPv6, UDP/IPv4, UDP/IPv6, DHCP, DNS, HTTP, HTTPS, TELNET, NTP

Network Functions

Packet resending (ARQ), Forward Error Correction (FEC), Adaptive Rate Control (ARC), Reorder, Packet Shaping, Arbitrary Port Setting, NAT Compatibility, Encryption, IP Precedence/DiffServ Support

External Control

Via Web Browser, Control by HTTP CGI, TELNET, RS-232C

Connection Modes

IP mode, NAT Traversal mode, IP / NAT Traversal mode

Dimensions (width x depth x height)

Approx. 320 mm x approx. 230 mm x approx. 61 mm (Excluding projecting parts)

Weight

Approx. 2.0 kg (approx. 4.4 lb)

Power Input

AC 100-240 V, -1.4 A, 50/60 Hz

Power Consumption

Maximum: approx. 45 W, Standby: 0.6 W

DC Power Input

DC 24 V, 2.5 A

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

10 % to 90 % (non-condensing)
