Model

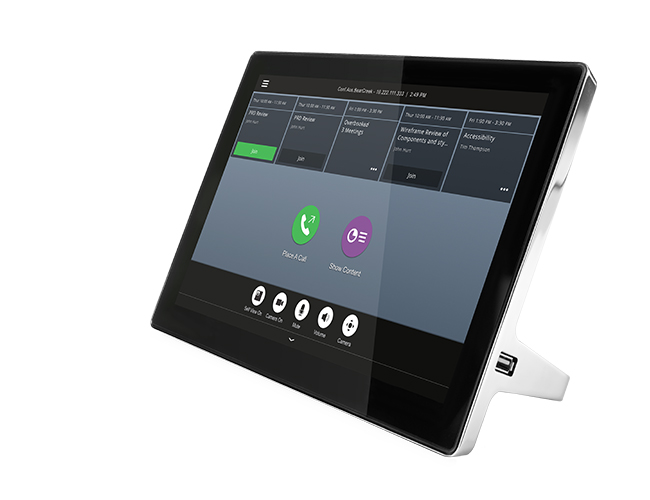

Polycom RealPresence Touch

Package includes

• Polycom RealPresence Touch and RJ45 (LAN) cable
• Set up sheet
• Printed Warranty Statement

Compatible systems

• RealPresence Group Series 300,310,500,550 and 700
• Polycom® RealPresence Immersive Studio™
• Polycom® RealPresence OTX® Studio

Usability

• Display: 10.1-inch screen
• Aspect ratio: 16 x 10
• Resolution: WXGA (1280 x 800)
• Designed with built in stand support. No external dock required
• Viewing angle: >= 178 degrees
• Positioning/placing angle: 30 degrees/65 degrees
• Tap and touch control to access call controls and administrative menus
• New Intuitive User interface and home screen customization

Technology

• Projected Capacitive Touch sensor that supports multi-touch and gesturing functionality
• Direct API command through network
• LCD panel with LED backlighting. IPS (In-Plane Switching)

Electrical

• Power Over Ethernet (PoE), Compatible with IEEE 802.3af type 1
• Low-power sleep mode

Physical characteristics

• Physical dimensions: 252 x 175.8 x 11.25 mm (no stand)
• Micro-B USB 2.0 OTG (Supports a USB connection to a PC for content sharing)
• Type A USB 2.0 (Supports software updates)
• Mechanical locking mechanism (Kensington lock)
• Scratch-resistant and oleophobic glass
• Weight: 1 Kg (approximate)

Operating environment

• Temperature: 0ºC to 40ºC
• Non-operating: -20ºC to 70ºC
