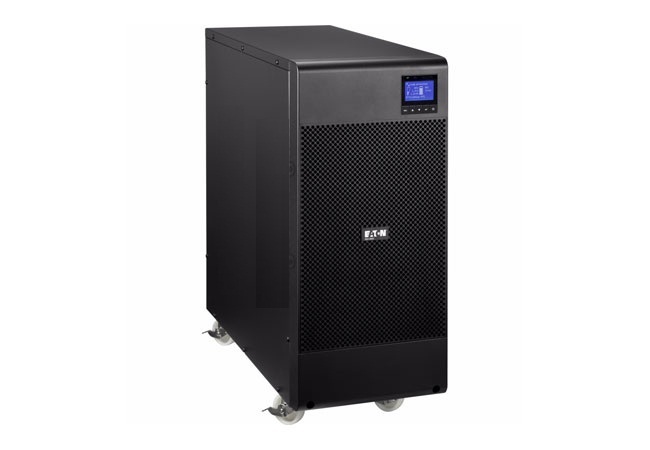

Bộ lưu điện UPS Eaton 9SX 5000I (9SX5KI)
|
Model |
9SX5KI |
|
Rating (VA/W) |
5000 VA/4500 W |
|
Format |
Tower |
|
Electrical characteristics |
|
|
Technology |
ON-LINE double conversion with automatic bypass and Power factor correction system |
|
Nominal voltage |
200/208/220/230/240V |
|
Input voltage range |
180-276V without derating |
|
Input frequency range |
40-70Hz, 50/60Hz autoselection, frequency converter mode |
|
Connections |
|
|
Input |
Ph+N+E Terminal block |
|
Outputs |
Ph+N+E Terminal block |
|
Switched outlet group |
2 outlet groups |
|
Communication |
|
|
Communication ports |
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
|
Communication slot |
1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
