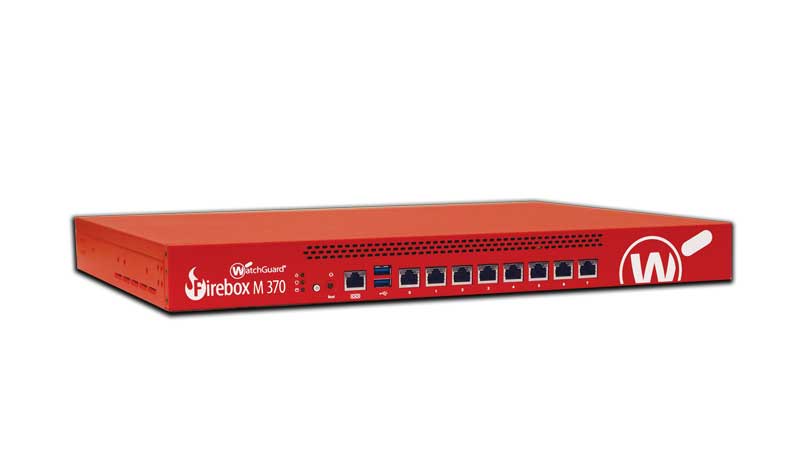

Firebox M Series

M370

THROUGHPUT

Firewall (UDP 1518)

8 Gbps

Firewall (IMIX)

4.7 Gbps

VPN (UDP 1518)

4.6 Gbps

VPN (IMIX)

1.4 Gbps

HTTPS Content Inspection (IPS enabled)

800 Mbps

Gateway Antivirus

3.0 Gbps

IPS ((fast/full scan)

4.8/2.5 Gbps

UTM (fast/full scan)

2.6/1.7 Gbps

CAPACITY

Interfaces 10/100/1000

8

I/O interfaces

1 Serial / 2 USB

Concurrent connections

3,300,000

Concurrent connections (proxy)

330,000

New connections per second

51,000

VLANs

300

WSM licenses (incl)

4

TDR Host Sensors included

150

Authenticated users limit

500

VPN TUNNELS

Branch Office VPN

100

Mobile VPN

150

SECURITY FEATURES

Firewall

Stateful packet inspection, deep packet inspection, proxy firewall

Application proxies

HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy

Threat protection

DoS attacks, fragmented & malformed packets, blended threats & more

VoIP

H.323, SIP, call setup and session security

Filtering options

Browser Safe Search, Google for Business

VPN & AUTHENTICATION

Cloud providers

AWS (Static/Dynamic), Azure (Static/Dynamic)

Encryption

AES 256-128 bit, 3DES, DES

IPSec

SHA-2, IKE v1/v2, IKE pre-shared key, 3rd party cert, Suite B

Single sign-on

Windows, macOS, mobile operating systems, RADIUS, SAML 2.0

Authentication

RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode

MANAGEMENT

Logging and notifications

WatchGuard, Syslog, SNMP v2/v3

User interfaces

Centralized console (WSM), Web UI, scriptable CLI

Reporting

WatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools

CERTIFICATIONS

Security

CC EAL4+ Pending: ICSA Firewall, ICSA IPSec VPN, FIPS 140-2

Safety

NRTL/C, CB

Network

IPv6 Ready Gold (routing)

Hazardous substance control

WEEE, RoHS, REACH
