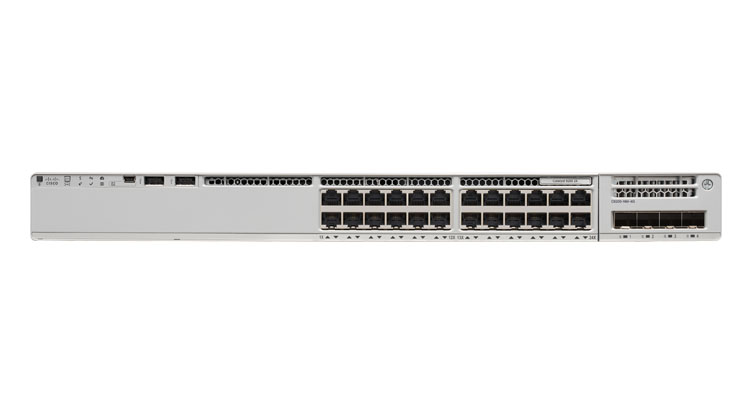

Thiết bị mạng Switch Cisco C9300-24T-A
|
Switch Model |
C9300-24T-A |
|
Total 10/100/1000, Multigigabit copper or SFP Fiber |
24 ports data 10/100/1000 Mbps |
|
Uplink Configuration |
Modular Uplinks (C9300-NM-xx) |
|
Default AC power supply |
350W AC (PWR-C1-350WAC) |
|
Software |
Network Advantage |
|
Available PoE power |
— |
|
Catalyst 9800 Embedded WLC |
Yes (200APs) |
|
SD-Access Support |
Yes (256 Virtual Networks) |
|
Stacking support |
StackWise®-480 |
|
Stacking bandwidth support |
480 Gbps |
|
Cisco StackPower |
Yes |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes |
32,000 |
|
IPv6 routing entries |
16,000 |
|
Multicast routing scale |
8,000 |
|
QoS scale entries |
5,120 |
|
ACL scale entries |
5,120 |
|
DRAM |
8 GB |
|
Flash |
16 GB |
|
VLAN IDs |
4094 |
|
Switching capacity |
208 Gbps |
|
Forwarding rate |
154.76 Mpps |
|
Dimensions Chassis only (H x W x D) |
4.4 x 44.5 x 40.9 cm |
|
Weight |
7.27 Kg |
Các tùy chọn (Options) : Module network, Stacking cables và DNA licenses
|
Network module cho Cisco Catalyst C9300 |
|
|
Network module |
Description |
|
Catalyst 9300 Series 4x 1G Network Module |
|
|
Catalyst 9300 Series 4x Multigigabit Network Module |
|
|
Catalyst 9300 Series 8x 10G Network Module |
|
|
Catalyst 9300 Series 2x 40G Network Module |
|
|
Catalyst 9300 Series 2x 25G Network Module |
|
|
NM-BLANK-T1 |
Cisco Catalyst Type 1 Network Module Blank |
|
Stacking and StackPower cables cho Cisco Catalyst C9300 |
|
|
Product number |
Product description |
|
STACK-T1-50CM |
Data stack 50 cm (cable option with C9300 SKUs) |
|
STACK-T1-1M |
Data stack 1m (cable option with C9300 SKUs) |
|
STACK-T1-3M |
Data stack 3m (cable option with C9300 SKUs) |
|
CAB-SPWR-30CM |
Catalyst Stack Power Cable 30 CM |
|
CAB-SPWR-150CM |
Catalyst Stack Power Cable 150 CM |
|
DNA licenses cho Cisco Catalyst C9300 |
|
|
Product number |
Product description |
|
C9300-DNA-E-24-3, -5, -7 |
C9300 24 port Cisco DNA Essentials; 3, 5 and 7 year term |
|
C9300-DNA-A-24-3, -5, -7 |
C9300 24 port Cisco DNA Advantage; 3, 5 and 7 year term |
|
C9300-DNA-P-24-3, -5, -7 |
C9300 24 port Cisco DNA Premier; 3, 5 and 7 year term |
|
C9300-DNA-E-A-3, -5, -7 |
C9300 Cisco DNA Essentials to Advantage upgrade; 3, 5, 7 year term |
