THÔNG SỐ KỸ THUẬT

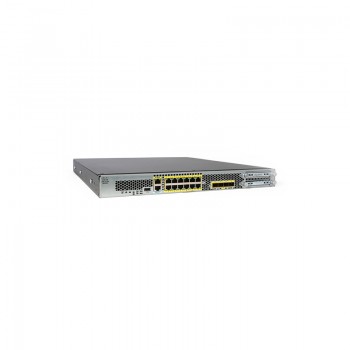

Thiết bị bảo vệ mạng Firepower Cisco FPR4112-NGFW-K9
|
Model |
FPR4112-ASA-K9 |
|||
|---|---|---|---|---|
|
Form factor |
1 RU – Fits a standard 19-in. (48.3cm) square-hole rack |
|||
|
Rack mount |
Slide rails, mount ears, and screws included (4-post EIA-310-D rack) |
|||
|
Airflow |
Front to rear – Cold aisle to hot aisle |
|||
|
Processor |
One 12-core 2.1-GHz Intel Xeon 4116 |
|||
|
Memory |
96-GB DRAM – 6 x 16-GB DDR4-2400 |
|||
|
Maximum number of interfaces |
24 With two 8-port network modules installed |
|||
|
Management port |
One Gigabit Ethernet Supports 1-Gb fiber or copper SFPs |
|||
|
Serial port |
One RJ-45 console |
|||
|
USB port |
One USB 2.0 Type A |
|||
|
Network ports |
Eight fixed 1-Gb and 10-Gb SFP ports (named Ethernet 1/1 through 1/8) |
|||
|
SFP ports |
Eight fixed 1-Gb and 10-Gb SFP ports |
|||
|
Pullout asset card |
Displays the serial number; on the front panel |
|||
|
Grounding lug |
On rear panel |
|||
|
Locator beacon |
On front panel |
|||
|
Power switch |
On rear panel |
|||
| Network modules |
Two network module slots (network module 2 and network module 3) |
|||
|
Supported network modules
|
|
|||
|
AC power supply |
Two (1+1) power supply module slots
Ships with one 1100-W AC power supply module
Hot-swappable
|
|||
|
DC power supply (optional) |
Two (1+1) power supply module slots
950-W DC power supply module
Hot-swappable
|
|||
|
Redundant power
|
1+1
|
|||
|
Fan |
Six fan module slots
5+1 redundancy
Hot-swappable
|
|||
|
Storage |
Two SSD slots
Ships with one 400-GB SSD installed in slot 1.
|
|||
|
MSP (optional)
|
Installed in the second SSD slot only
|
|||
|
Dimensions (H x W x D) |
1.75 x 16.89 x 29.7 in. (4.44 x 42.90 x 75.43 cm)
1.75 x 16.89 x 31.52 in. (4.44 x 42.90 x 80.06 cm) with fans
|
|||
|
Weight |
39.4 lb (17.87 kg) two power supply modules, two network modules, six fans
31.4 lb (14.24 kg) no power supply modules, no network modules, no fans
|
|||
|
System power |
AC: 100/240 V AC 10 A (at 100 V), 50 to 60 Hz
DC: -40 V DC to -60 V DC, 26 A (at -40 V)
|
|||
|
Temperature |
Operating: 32 to 104° F (0 to 40° C) at sea level
1° C reduction of maximum for every 1000 ft (305 m) above sea level
Nonoperating: -40 to 149°F (-40 to 65° C)
|
|||
