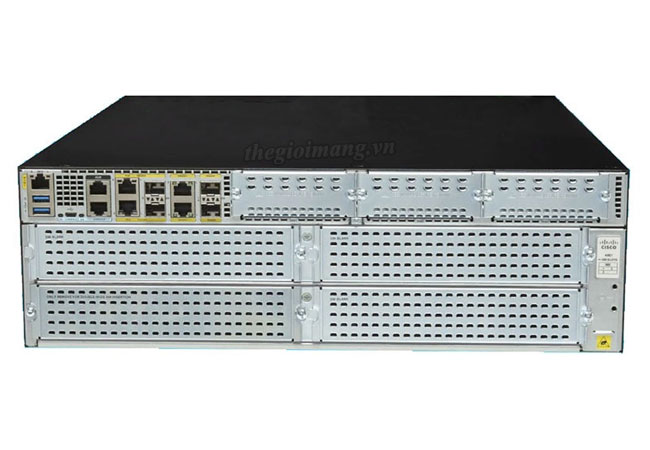

Cisco ISR4461/K9
- Giá bán: Liên hệ
- Dòng sản phẩm: Thiết bị mạng Cisco
- Tình trạng hàng hóa: Liên hệ
- ● ISR4461/K9 Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane)
● 10 GE SFP+, PoE GE/SFP, GE/SFP integrated WAN ports
● 10-Gbps+ performance
● 7-Gbps encrypted throughput
THÔNG SỐ KỸ THUẬT
Thiết bị mạng Router Cisco ISR4461/K9
|
Model
|
ISR4461/K9
|
|
Aggregate Throughput
|
1.5Gbps
|
|
Aggregate Throughput (Performance License)
|
3Gbps
|
|
Aggregate CEF Only Throughput (Boost License)
|
Over 7Gbps
|
|
Total onboard WAN or LAN 10/100/1000 ports
|
4
|
|
Total onboard WAN or LAN 10Gbps ports
|
2
|
|
RJ-45-based ports
|
4
|
|
SFP-based ports
|
4
|
|
Enhanced service-module slot
|
3
|
|
NIM (Network Interface Modules) slots
|
3
|
|
OIR (all I/O modules)
|
Yes
|
|
Onboard ISC slot
|
1
|
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)
|
NA
|
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)
|
NA
|
|
Default memory DDR3 ECC DRAM (data plane)
|
4 GB
|
|
Maximum memory DDR3 ECC DRAM (data plane)
|
4 GB
|
|
Default memory DDR3 ECC DRAM (control/services plane)
|
8 GB
|
|
Maximum memory DDR3 ECC DRAM (control/services plane)
|
32 GB
|
|
Flash Memory
|
8 GB (default) / 32 GB (maximum)
|
|
External USB 2.0 slots (type A)
|
2
|
|
USB console port -type B mini (up to 115.2 kbps)
|
1
|
|
Serial console port - RJ45 (up to 115.2 kbps)
|
1
|
|
Serial auxiliary port - RJ45
(up to 115.2 kbps) |
1
|
|
Power-supply options
|
Internal: AC, DC (roadmap) and PoE
|
|
Redundant power supply
|
Internal: AC, DC and PoE
|
| Power Specifications | |
|
AC input voltage
|
100 to 240 VAC autoranging
|
|
DC Input Voltage
Input Voltage
Input Current
|
48 – 60V
12A Max
|
|
AC input frequency
|
47 to 63 Hz
|
|
AC input current range, AC power supply (maximum)
|
7.1 to 3.0A
|
|
AC input surge current
|
60 A peak and less than 5 Arms per half cycle
|
|
Maximum power with AC power supply (watts)
|
1000W (no PoE)
|
|
Maximum power with DC power supply (watts)
|
437 (no PoE)
|
| Maximum power with PoE power supply (platform only) (watts) |
1000 with PoE redundant
1450 with PoE boost no redundancy
|
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
| Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
| Sizes and Weights | |
|
Dimensions (H x W x D)
|
3.5 x 17.25 x 18.5 in
88.9 x 438.15 x 469.9 mm
|
|
Shipping Box Dimensions
(H x W x D)
|
9.75 x 22.25 x 26 in
(24.76 x 56.51 x 66.04 mm)
|
| Rack-mount 19in. (48.3 cm) EIA | Included |
| Rack-mount 23in. (58.4 cm) EIA | Optional |
| Airflow | I/O side to bezel side |
| MTBF (Hours) | 480770 |
| Operating Conditions | |
| Temperature | 32 to 104ºF (0 to 40ºC) |
|
Altitude
|
0 – 10,000 ft (0 – 3,050 m)
|
| Relative humidity | 5% to 85% |
| Short-term humidity | 5% to 90%, not to exceed 0.024 kg water/kg of dry air |
|
Acoustics: Sound pressure (Typical/ maximum)
|
50.6/73.1 dBA |
|
Acoustics: Sound power (Typical/ maximum)
|
58.2/78.8 dBA |
|
Nonoperating Conditions
|
|
| Temperature | -40 to 158ºF (-40 to 70ºC) |
| Relative humidity | 5% to 95% |
| Altitude | 15,584 ft (4750m) |
