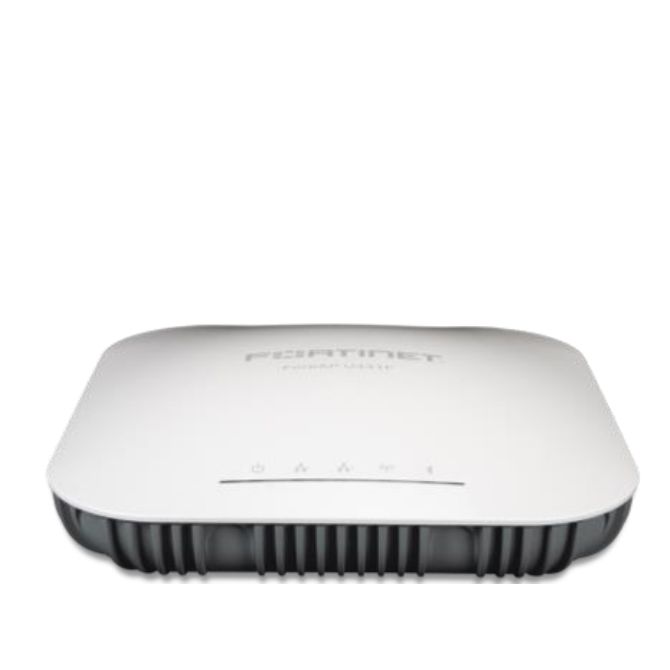

FortiAP U231F (FAP-U231)
- Giá bán: Liên hệ
- Dòng sản phẩm: Thiết bị mạng Fortinet
- Tình trạng hàng hóa: Liên hệ
- ● Fortinet FortiAP U231F (FAP-U231F): Indoor Wireless Universal AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1).
● Internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.
● 24x7 FortiCare Contract.
THÔNG SỐ KỸ THUẬT
Thiết bị không dây Indoor Wireless Access Point Fortinet FortiAP U231F (FAP-U231F)
| Mã sản phẩm | FAP-U231F |
| Hardware | |
| Hardware Type | Indoor AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 4 Dual band WiFI + 2 WiFi+Dual band Scanning + 1 Single band 2.4GHz BLE/ZigBee |
| Antenna Type and Peak Gain | - PIFA antenna - Dual band: 3.97 dBi for 2.4GHz and 5.89 dBi for 5GHz - Single band 5Ghz antenna 5dBi for 2.4GHz band - BLE antenna 3.5dBi at 2.4GHz band |
| Frequency Bands (GHz) | |
| Radio 1 Capabilities | - Band: 2.4 GHz or 5.0 GHz(High Band) a/b/g/n/ac/ax (2x2:2 stream) - Channel width: 20/40/80MHz - Modulation: BPSK, QPSK, 64/256/1024 QAM |
| Radio 2 Capabilities | - 5.0GHz a/b/g/n/ac/ax (2x2:2 stream) - Channel width: 20/40/80MHz - Modulation: BPSK, QPSK, 64/256/1024 QAM |
| Radio 3 Capabilities | - Service: (2x2:2 stream) - Band: 2.4 GHz service b/g/n/ax - Channel width: 20/40MHz - Modulation: BPSK, QPSK, 64/256/1024QAM - Scan: dual band scan |
| Maximum Data Rate | - Radio 1: up to 1201 Mbps - Radio 2: up to 1201 Mbps - Radio 3: up to 574 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |
| Interfaces | - 2x 10/100/1000 Base-T RJ45 - 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | - 1 x 802.3at PoE default - 1 x 802.af PoE with reduce TX power and no USB function |
| Simultaneous SSIDs | Up to 24 (21 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Maximum Tx Powerr (Conducted) | - Radio 1: • 2.4GHz: 23 dBm / 200 mW (2 chains combined) • 5GHz: 22 dBm / 158 mW (2 chains combined) - Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined) - Radio 3: • 2.4GHz: 23 dBm / 200 mW (2 chains combined) • 5GHz: 22 dBm / 158 mW (2 chains combined) |
| Kensington Lock | ✔ |
| IEEE Standards | 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az |
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | Up to 512 clients per radio (all radios) |
| Cellular Co-existence | ✔ |
| Reset Button | ✔ |
| LED Off Mode | ✔ |
| Advanced 802.11 Features | - Transmit Beam Forming (TxBF) - Low-Density Parity Check (LDPC) Encoding - Maximum Likelihood Demodulation (MLD) - Maximum Ratio Combining (MRC) - A-MPDU and A-MSDU Packet Aggregation - OFDMA - 2.4 GHz OFDMA - Spatial Reuse (BSS Coloring) - HE-MU-MIMO - UL MU-MIMO 802.11ax mode - UL MU-MIMO 802.11ac mode - DL-MU-MIMO - Enhanced Target Wake Time (TWT) - ZeroWait DFS /Agile DFS |
| Wireless Monitoring Capabilities | |
| Rogue Scan radio modes | Background, Dedicated |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | ✔ |
| Spectrum Analyzer | ✔ |
| Dimensions | |
| Length x Width x Height | 6.5 x 6.5 x 2.05 inches (165 x 165 x 52 mm) |
| Weight | 1.5 lbs (0.68 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Standard Mount kit for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply | SP-FAP200-PAX-XX |
| Power Consumption (Maximum) | 18.5W |
| Humidity | 5–90% non-condensing |
| Operating / Storage Temperature | 32–122°F (0 - 50°C) / -22–158°F (-30–70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | ✔ |
| Mean Time Between Failures | >10 Years |
License & Phụ kiện sử dụng cho FortiAP FAP-U231F
| SKU | Description |
| FC-10-P231F-247-02-DD | 24x7 FortiCare Contract |
| SP-FAP200-PA-XX | AC adapter |
TÀI LIỆU LIÊN QUAN
- FAP-U231F Indoor Wireless Universal AP - Tri radio (802.11 b/g/n/ax 2x2 MU-MIMO, 802.11 a/n/ac/ax 2x2 MU-MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 ), internal antennas, 2x 10/100/1000 RJ45 port, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: AC adapter SP-FAP200-PA-XX
- FC-10-P231-247-02-DD - 24x7 FortiCare Contract
