Synology DS1821+

Synology DS1821+

Synology DS1821+

/ 0 Bình luận

  • 31.995.999 VNĐ
  • Dòng sản phẩm: Thiết bị lưu trữ Synology
  • Tình trạng hàng hóa: Liên hệ
  • Thiết bị lưu trữ NAS Synology DS1821+

THÔNG SỐ KỸ THUẬT

CPU

 CPU Model AMD Ryzen V1500B
  CPU Architecture 64-bit
  CPU Frequency 4-core 2.2 GHz
  Hardware Encryption Engine (AES-NI)

Memory

 System Memory 4 GB DDR4 ECC SODIMM
  Memory Module Pre-installed 4 GB (4 GB x 1)
  Total Memory Slots 2
  Maximum Memory Capacity 32 GB (16 GB x 2)
  Notes
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

 Drive Bays 8
  Maximum Drive Bays with Expansion Unit 18 (DX517 x 2)
  M.2 Drive Slots 2 (NVMe)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
  Maximum Single Volume Size* 108 TB
  Hot Swappable Drive
  Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.

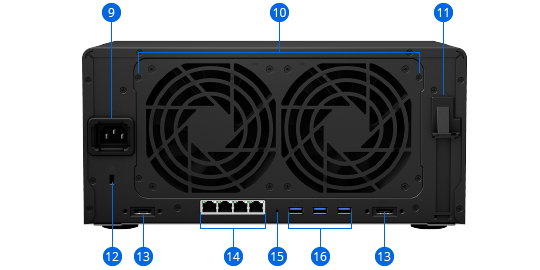

External Ports

 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
  USB 3.0 Port 4
  eSATA Port 2

PCIe

 PCIe Expansion 1 x Gen3 x8 slot (x4 link)

File System

 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
  Notes exFAT Access is purchased separately in Package Center.

Appearance

 Size (Height x Width x Depth) 166 mm x 343 mm x 243 mm
  Weight 6 kg

Others

 System Fan 120 mm x 120 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan
  Brightness Adjustable Front LED Indicators
  Power Recovery
  Noise Level* 22.2 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 250 W
  AC Input Power Voltage 100 V to 240 V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption* 59.8 W (Access)
26.18 W (HDD Hibernation)
  British Thermal Unit 204.05 BTU/hr (Access)
89.33 BTU/hr (HDD Hibernation)
  Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM

Warranty

 3-year hardware warranty, extendable to 5-year coverage - EW201
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

 RoHS Compliant

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Optional Accessories
  Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

DS1821+ là model thay thế của DS1819+

DS1821+ hỗ trợ 8HDD * 14TB để triển khai File Servers đáp ứng yêu cầu dung lượng lưu trữ nhanh chóng của doanh nghiệp hiện nay. Đồng thời DS1821+ còn có khả năng mở rộng tuyệt vời thêm 10HDD (mua thêm DX517).

Nas-synology-ds1819-thiet-bi-luu-tru-du-lieu-data-file-server-banner

DS1821+ sử dụng CHIP AMD Ryzen V1500B 4-core 2.2 GHz và RAM 4GB (nâng cấp 32GB) cho tốc độ 110,000 IOPS @4K và tốc độ ghi 2300MB/s. DS1821+ đáp ứng tốt yêu cầu cho các doanh nghiệp cần tốc độ cao vì ngoài 4 cổng LAN 1Gb, còn có thể gắn thêm card 10GbE

Tải tài liệu kỹ thuật tại đây:

https://www.synology.com/en-us/support/download/DS1821+
